Alignment Training Aids

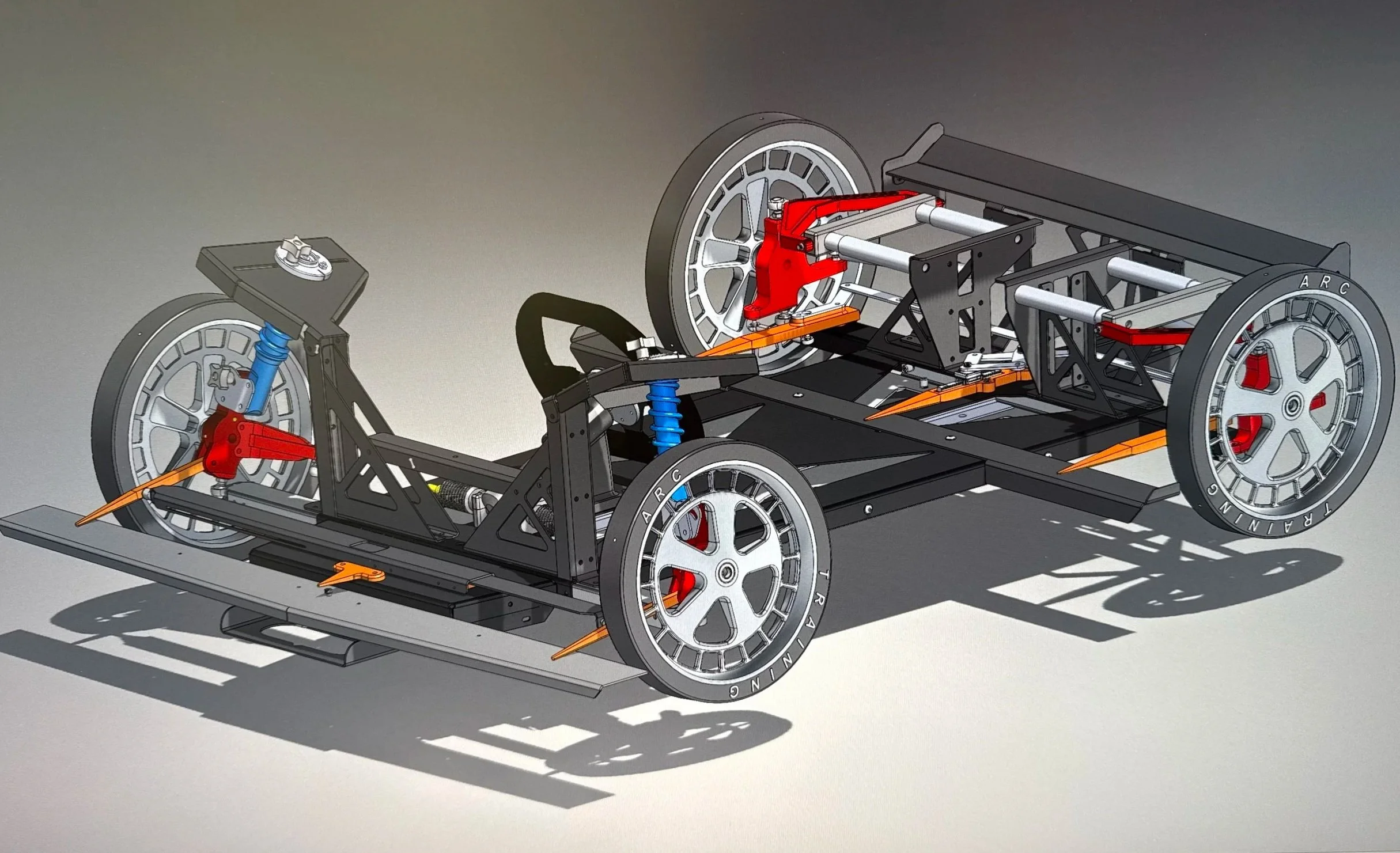

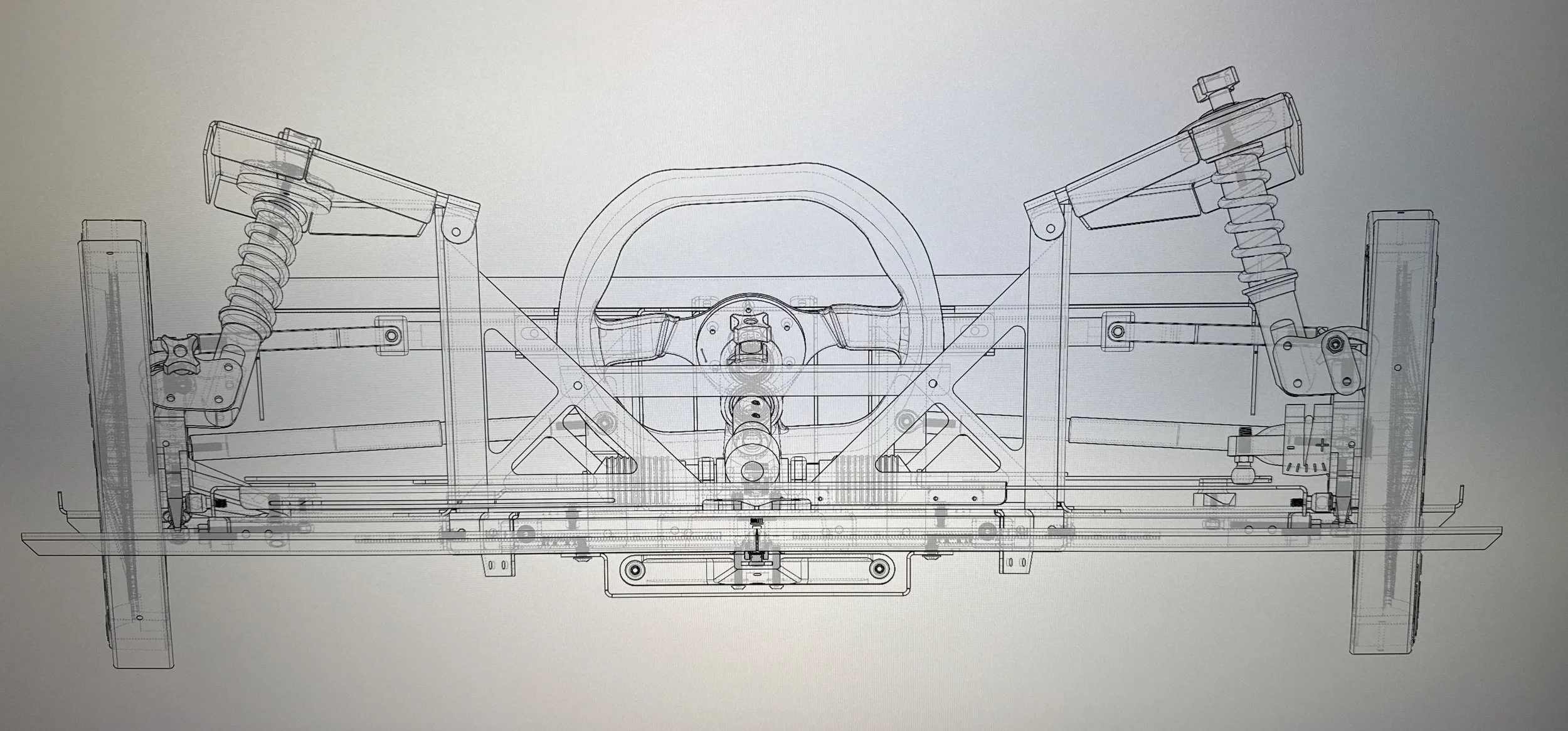

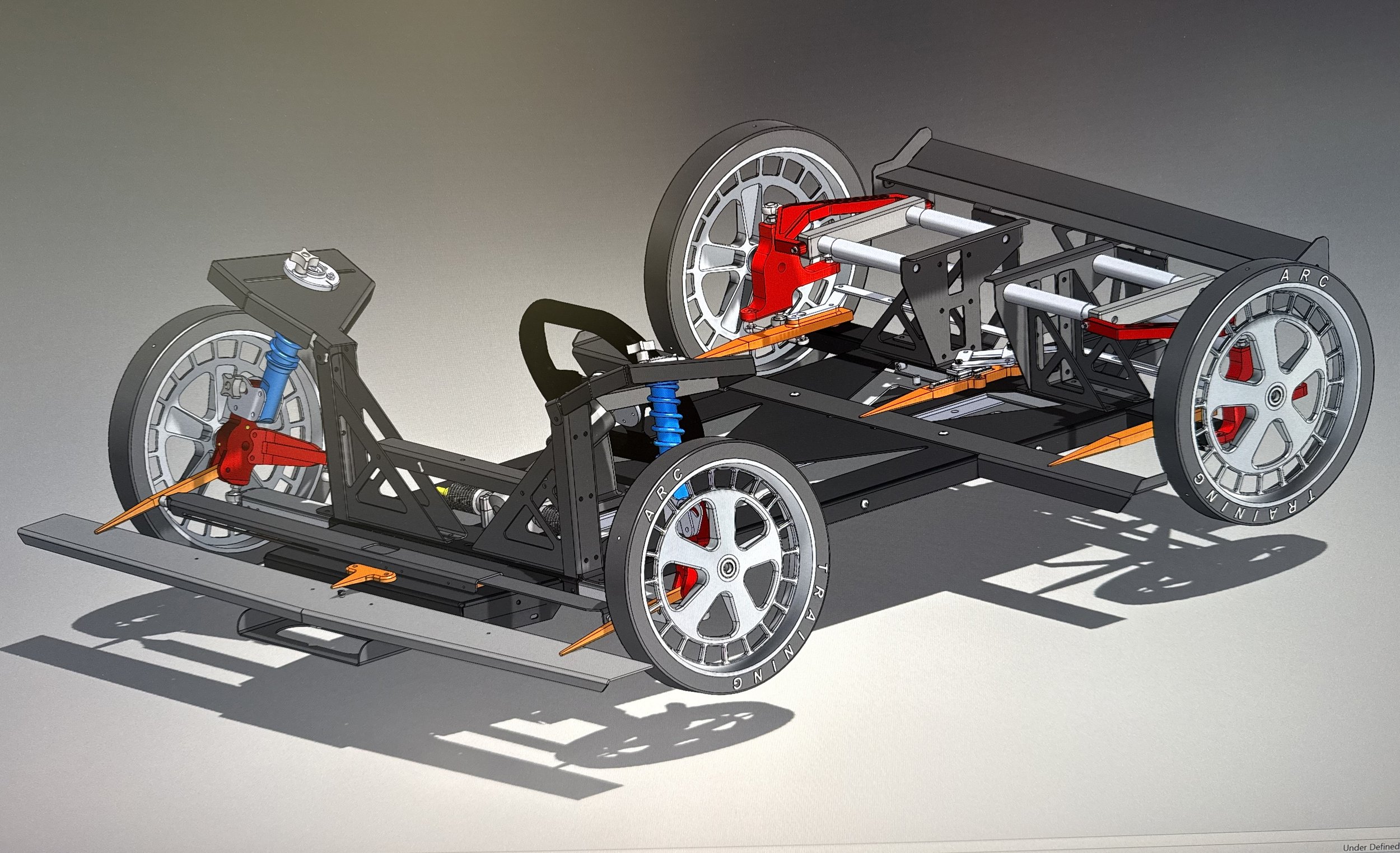

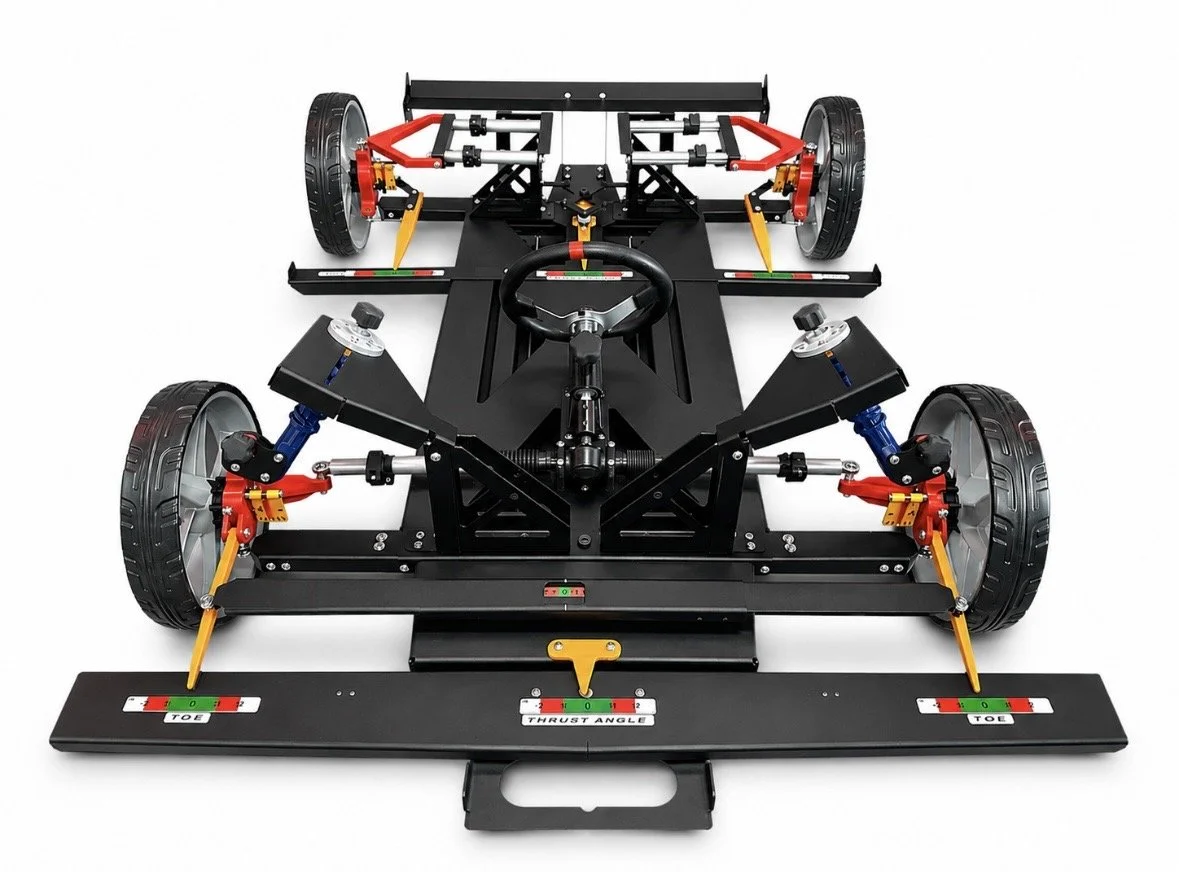

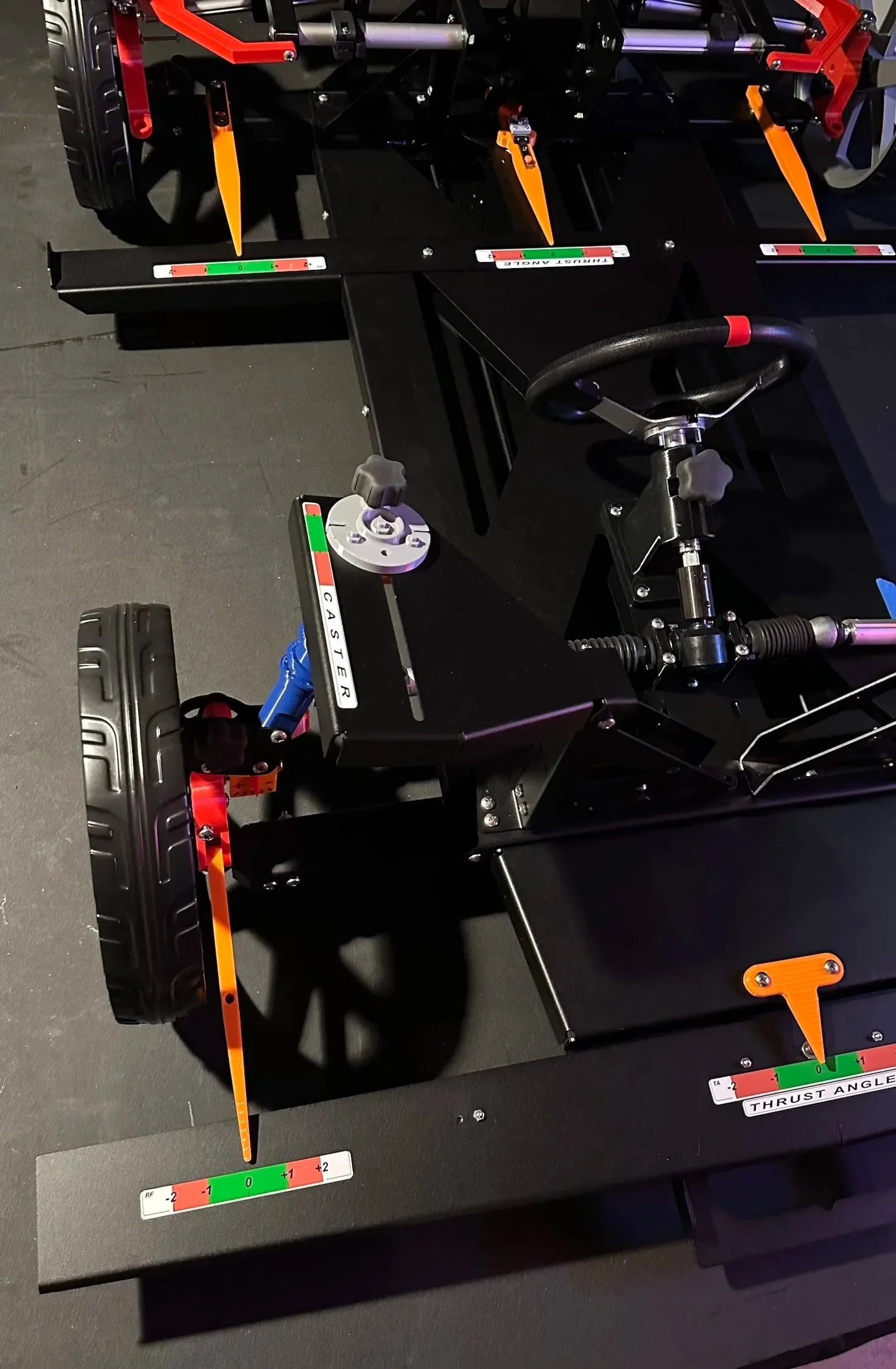

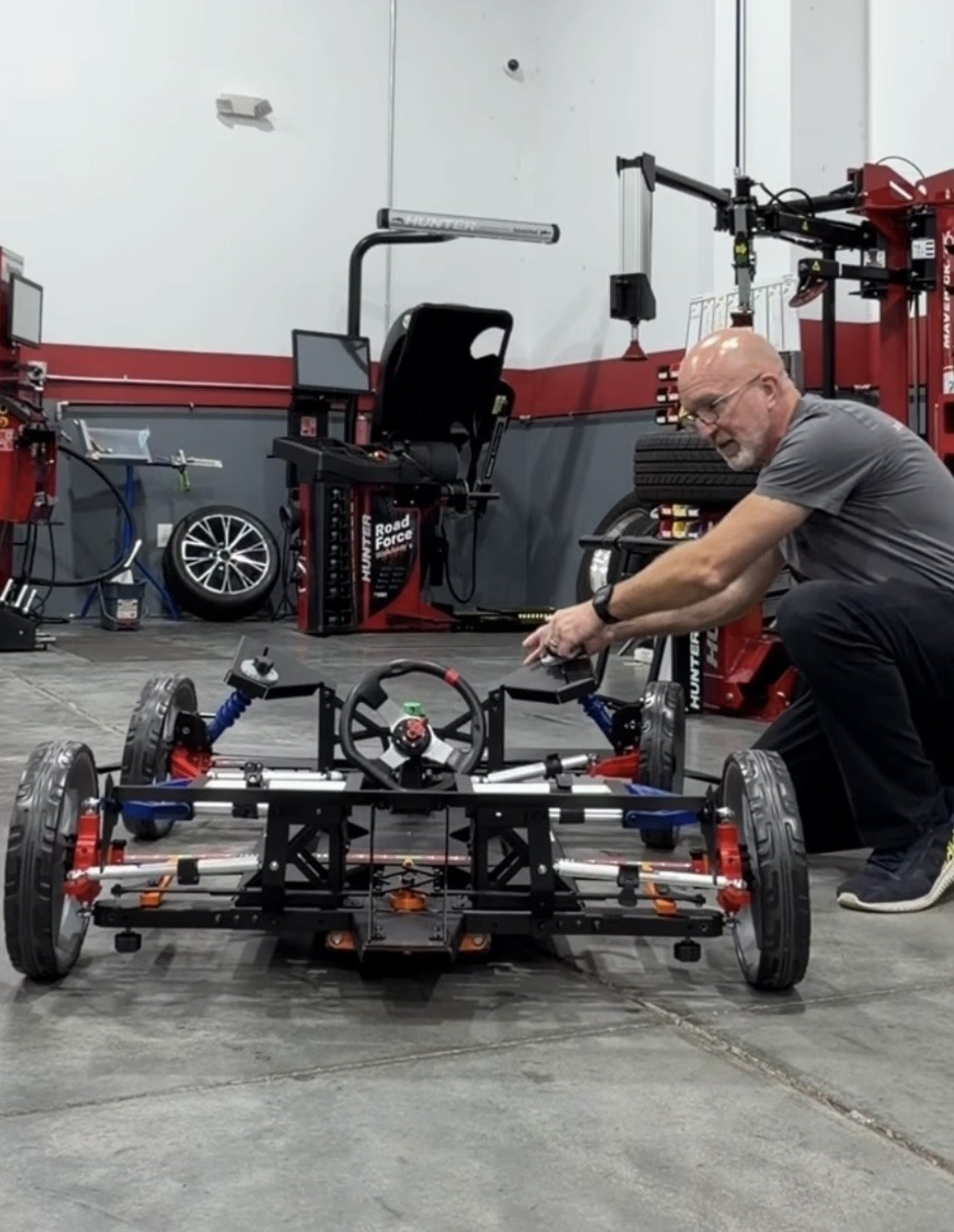

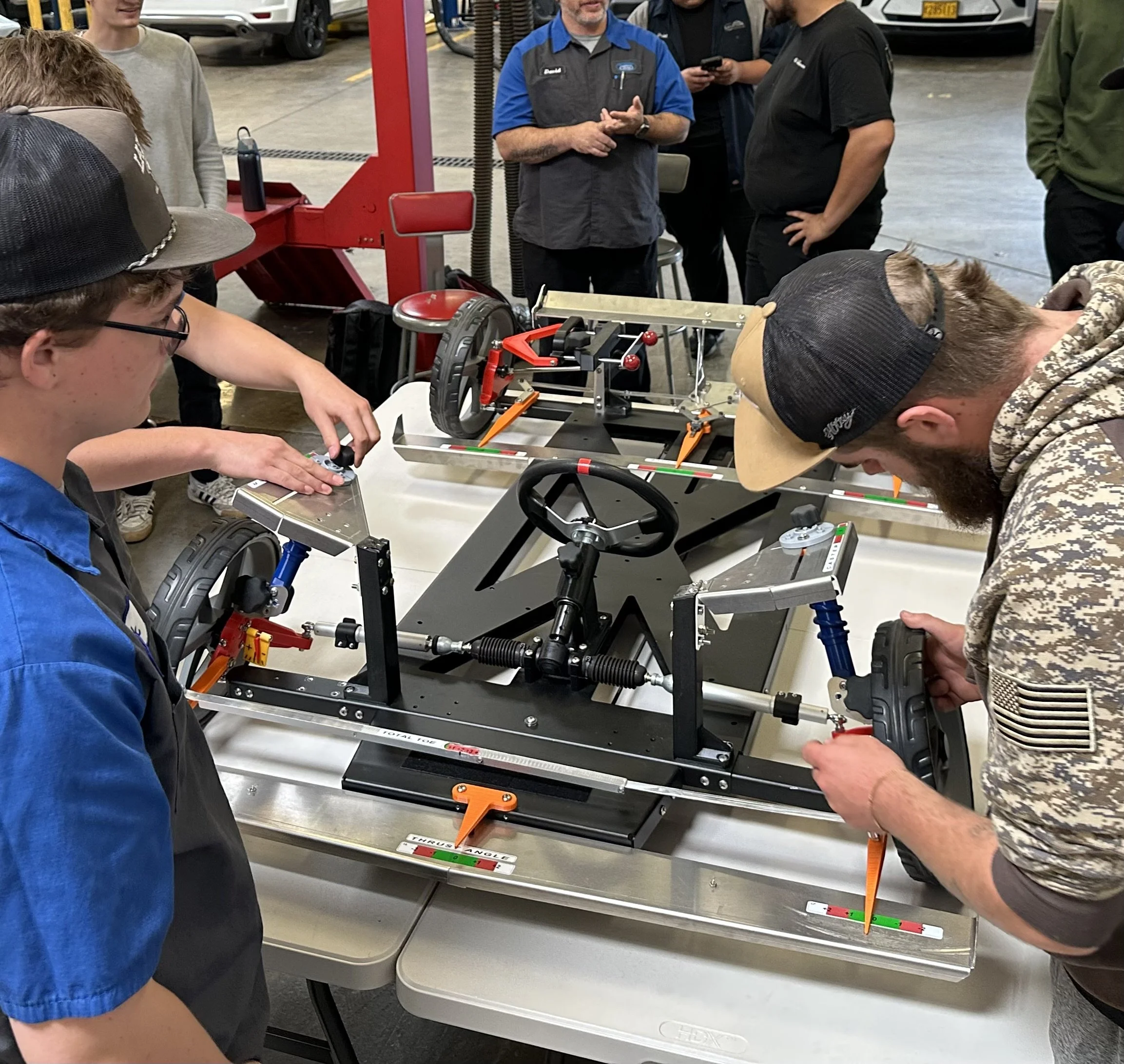

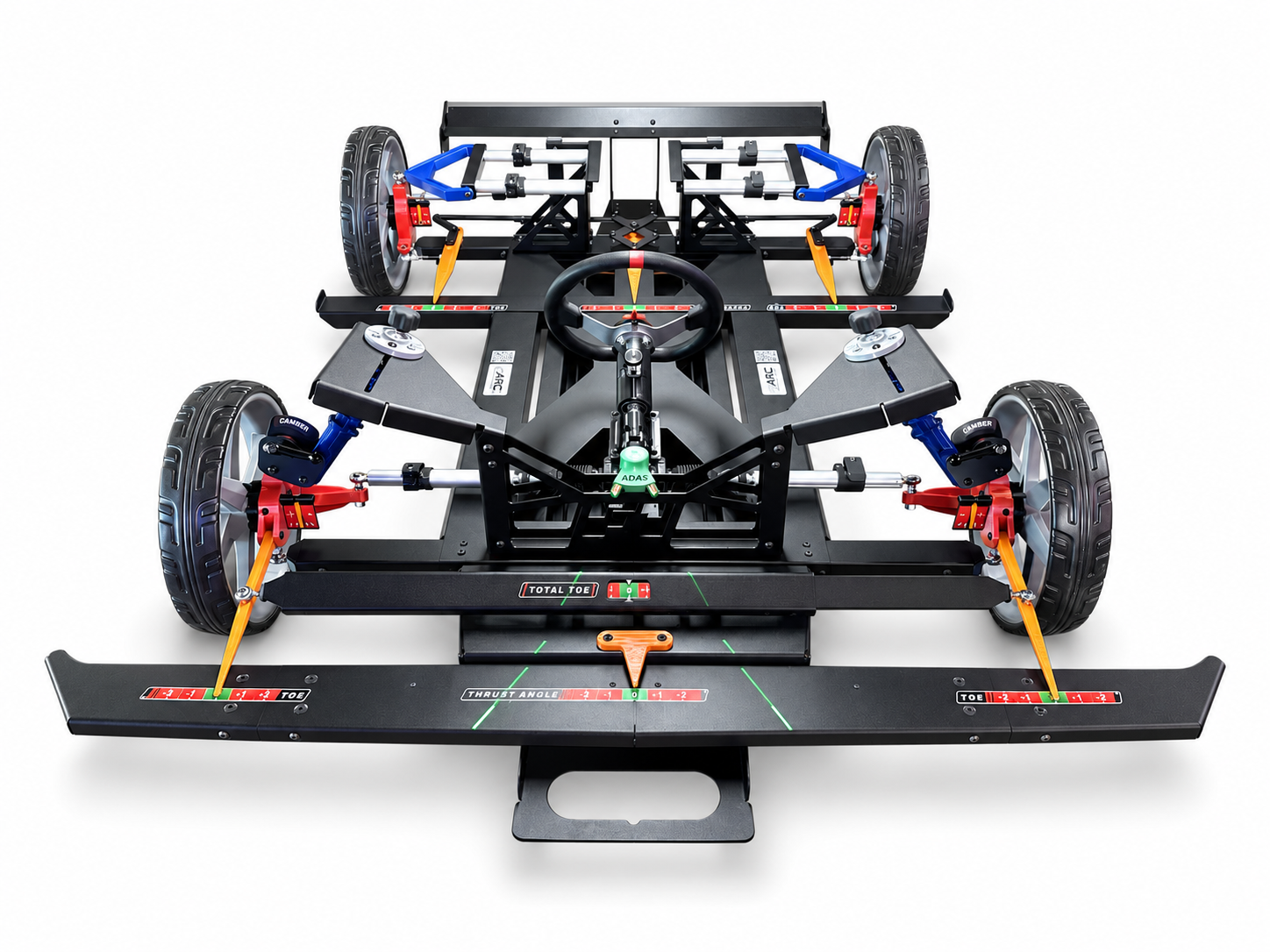

The Automotive Reactive Curriculum, Alignment Training Aid, model F1, offers a physical, mechanical and exaggerated explanation for theoretical alignment angles. Don’t rely on forgettable rules of thumb anymore. See how angles affect each other, feel the physics that castor and SAI have on steering wheel returnability, see how thrust angle directly affects front toe bar graphs, manipulate cross caster and cross camber misalignments to cause a pull in seconds, all without tools! The A.R.C. F1 teaches the HOW and WHY, not just the “what”. With nearly 30° of adjustment it’s easy to see “camber roll on turns” and how camber will wear tires. Will toe cause a pull? Try it! How does thrust angle cause dog tracking? Try it! What angles cause a crooked steering wheel? Try it! Bug the car and let your students figure out how to fix it in minutes. No more groups of students waiting around for the first group to finish. Add enthusiasm to a boring classroom lecture!

TEACHES…
-Camber
-Caster
-Toe
-SAI
-Thrust angle
-Ackermann
-What happens during caster sweep
-Which angles pull and which don’t
-Why the steering wheel returns
-How toe equalizes
-How to induce a pull from cross caster or camber
-What happens if you ignore thrust angle
-What does thrust angle do to the front
-How adjusting camber affects toe
-LSA shows how adjusting caster/camber affect each other.
-Has SAS reminder

Fully Assembled Dimensions:
66.5” long
48.5 wide
16.75” tall at top of steering wheel
68 lbs.
